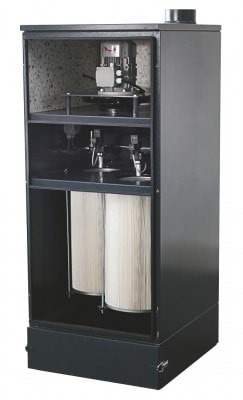

Filter system PC2 | cartridge | dust suction system | 20m² filter area
(for daily sandblasting between 4 - 8 hours)
As a compact filter system in a sturdy sheet steel housing, degreased, primed and painted, with all the necessary inspection openings, with built-in filter cartridge for highly efficient, load-independent dedusting (efficiency for fine dust particles up to 99.9%).
Permanent cleaning during operation with a blast of compressed air. The integrated counterflow baffle chamber of the pre-separator directs the majority of the sucked-in dust particles directly into the removable dust collector
Filter system "PC2" for frequent emitters
The compact filter system in a painted sheet steel housing, with all necessary inspection openings,
with built-in filter cartridge for highly efficient, load-independent dedusting (efficiency for
Fine dust particles up to 99.9%).
Permanent cleaning of the cartridge during operation by a blast of compressed air. A large part of the sucked-in dust particles are fed directly into the removable dust collector.
| Technical specifications | |
| Overall length | 1 m |
| Overall length | 1 m |
| Total height | 1,93 m |
| Air performance | ca. 1500 m³/h |
| Filter area | 20 m² |
| Operating pressure | max. 6,0 bar |
| Engine power | 0,75 kW |
| SKU | 9311.025 |
|---|---|
| Shipping | Shipping not included |
| VAT | plus 19% VAT |
| Delivery time | approx. 1 week |
| Filter Type | Cartridge Filter |
| Air performance | 1500 M³/H |
