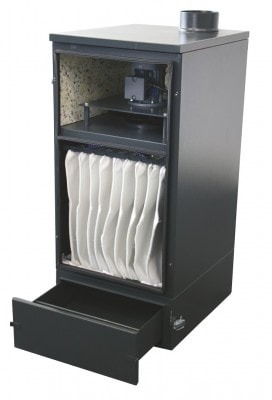

Filter system TFA 1 | pocket filter| dust suction system | 600 m³ / h air output
Pocket filter extraction system type "TFA I" for daily sandblasting work
The compact filter system in a sturdy sheet steel housing, degreased, primed and painted, with all the necessary inspection openings. The coarse dust is pre-separated through an air deflection baffle. The fine dust is separated in the shake-off filter bags made of high-quality needle oil and can be easily cleaned from the outside using a hand shaking lever. The fan sits in a soundproof chamber. The clean air enters the top of the device
For daily sandblasting work (between 1 - 4 hours)
| Technical Data | |
| Overall length | 550 mm |
| Overall depth | 650 mm |
| Overall height | 1.180 mm |
| Air output | ca. 600m³/h |
| Filter area | 4,5 m² |
| Motor power | 0,55 kW |
| Power connection | 400 V |
| Noise level | 70 dbBA) |
