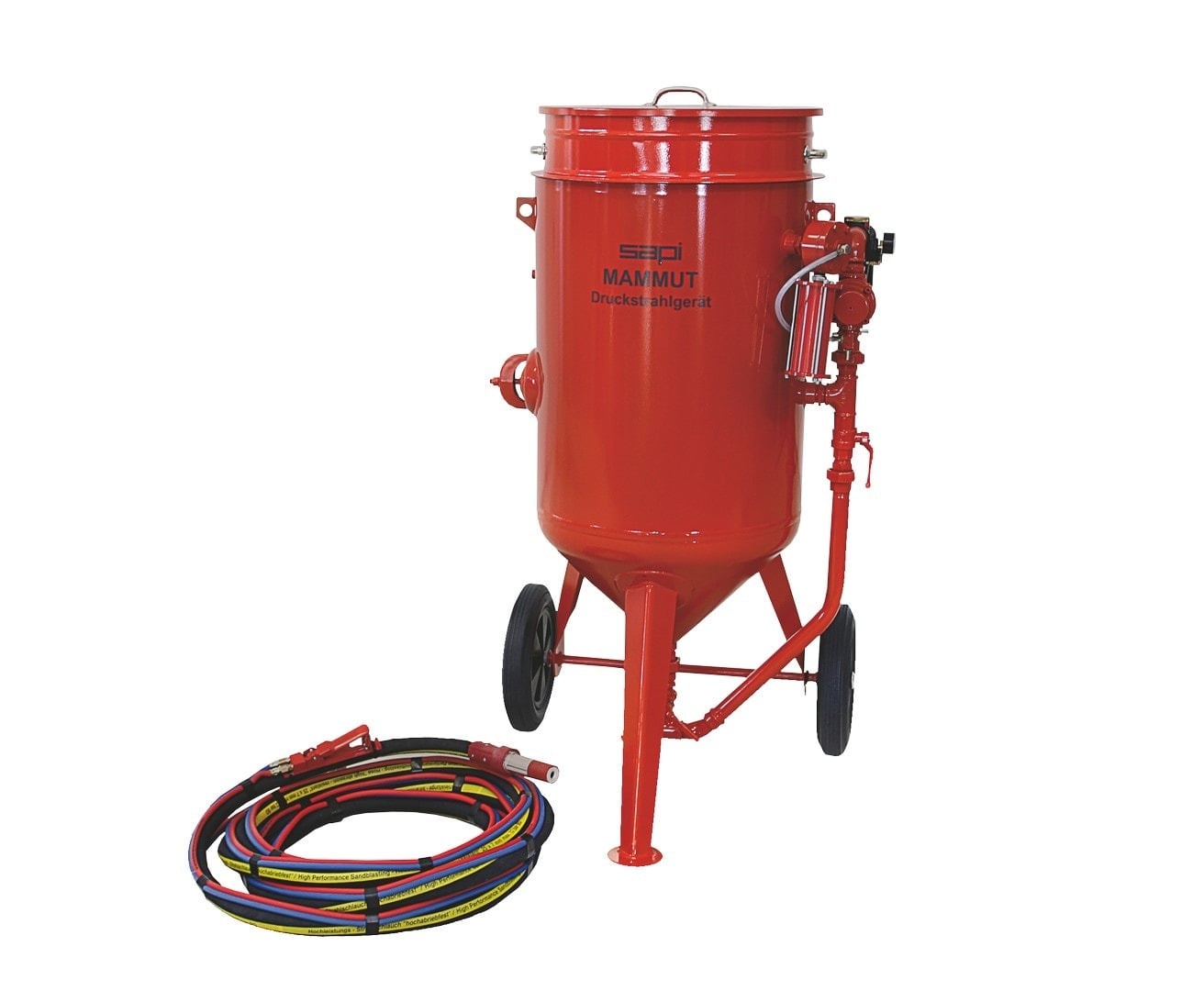

Mammut 200 Liter | Pressure sandblasting machine
Mobile 200 l pressure sandblasting device with inlet/outlet valve shut-off system (boiler ventilation shut-off), pressure-regulated from 0.1 - 12 bar, 1 "water separator permanently attached. Suitable for all common sandblasting media. TÜV-tested with CE declaration of conformity.
- This Item: €4,087.65 €3,435.00
- Sandblasting helmet RED 2 with Nylon cape €355.81 €299.00
- Inner lens for sandblasting helmet RED 2 €34.51 €29.00
- Wear plate for blasting helmet RED 2 €41.65 €35.00
- Peel-off film for sandblasting helmet RED 2 €41.65 €35.00
Our SAPI pressure sandblasting device type "Mammut" with a tank capacity of 200 litres is suitable for all common sandblasting media. The sandblasting pressure can be continuously adjusted from 0.1 - 12 bar using the built-in pressure regulator. A water separator is also permanently attached to the sandblasting device, this separates moisture from the compressed air and prevents the sandblasting agent from clumping due to too much moisture.
Our 2-part inlet/outlet valve shut-off system is included for the safe operation of the sandblasting device. This starts and stops the sandblasting process by operating the hand lever, which is mounted on the sandblasting hose.
The scope of delivery includes:
- SAPI pressure sandblasting device "Mammut 200 L"
- Pressure regulator 1 1/4", permanently attached
- Water separator 1 1/4", permanently attached
- Inlet/outlet valve shutdown system
Technical data pressure sandblasting device:
- Precisely adjustable from 0.1 - 12 bar
- TÜV-tested with certificate
- Fixed piping 1 1/4 "inside and outside
- Rubber-coated metal cone with rubber seal
- Generous hand hole
- Undercarriage with rubber wheels
- Abrasive dosing valve (suitable for all common abrasives)
- Capacity 200 l
- Total height 1,420 mm
- Cup diameter 600 mm
- Total diameter 1,000 mm
- Weight approx. 140 kg
| SKU | 9522.200_EA |
|---|---|
| Delivery time | approx. 1 week |
| Shipping | Shipping not included |
| VAT | plus 19% VAT |
| Sale_label | No |
| Volumen | 200 L |
| Size Blasting Pot | 200 Liter |
| Quick Stop | No |
Recommended accessories for pressure sandblasting tanks with safety shutdown:
Sandblasting hose packages fully assembled for safety shutdown:
| 10 m sandblasting hose package 19x7 mm cpl. assembled With hand lever (backpressure lever), single control line, nylon nozzle holder and nylon sandblasting hose coupling. Article no. 9856.215 |
 |
| 10 m sandblasting hose package 25x7 mm cpl. assembled With hand lever (backpressure lever), single control line, nylon nozzle holder and nylon sandblasting hose coupling. Article no. 9851.110 |
|
| 10 m blasting hose package 32x8 mm cpl. assembled with hand lever (backpressure lever), single control line, nylon nozzle holder and nylon hose coupling. Article no. 9851.210 |
|
Silicon Carbide Venturi Pressure sandblasting Nozzles:
| Silicon carbide Venturi long nozzle ø 6 mm with 2" coarse thread, nozzle diameter 6 mm Article no. 3982.060 |
 |
| Silicon carbide Venturi long nozzle ø 8 mm with 2" coarse thread, nozzle diameter 8 mm Article no. 3982.080 |
|
| Silicon carbide Venturi long nozzle ø 10 mm with 2" coarse thread, nozzle diameter 10 mm Article no. 3982.100 |
|
Further accessories for pressure sandblasting devices, which make work easier:
Sandblasting media screens and lids for pressure sandblasting devices:
| Sandblasting media sieve for pressure sandblasting device When using bagged goods, the sandblasting media screen prevents pieces of paper from getting into the pressure vessel. In addition, if the abrasive is used several times, foreign matter is screened off. Article no. 3933.520 |
 |
| Lid for pressure sandblasting device The lid protects the pressure sandblasting vessel from dirt and moisture. Article no. 3933.015 |
 |
Sandblasting hose extensions fully assembled:
| 10 m sandblasting hose extension 19x7 mm cpl. assembled with 2 nylon hose couplings and control line. Article no. 9856.218 |
 |
| 10 m sandblasting hose extension 25x7mm cpl. assembled with 2 nylon hose couplings and control line. Article no. 9851.610 |
|
| 10 m sandblasting hose extension 32x8 mm cpl. assembled with 2 nylon hose couplings and control line. Article no. 9851.710 |
|
Personal protective equipment (PPE) as a complete set for optimum protection of the worker during sandblasting work:

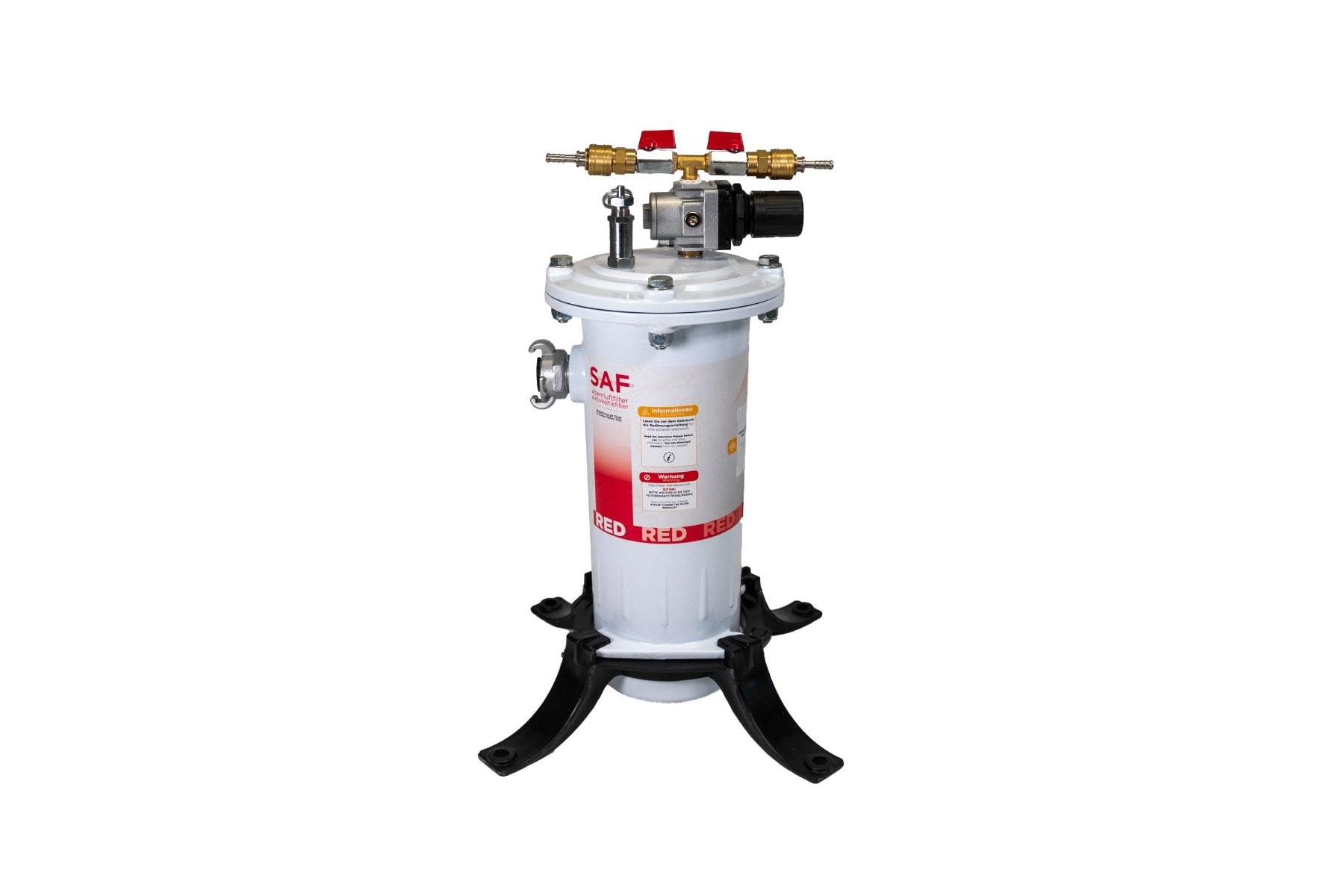

| Sandblasting protection package RED 2 consisting of: Blasting helmet "RED 2" with nylon jacket Sandblasting suit nylon/cotton 1 pair of blasting gloves leather Breathing air filter/activated carbon filter "SAF Connecting hose for breathing air filter 10 m breathing air hose 1 pack inner discs for "RED 2 1 pack wear plates for "RED 2 1 pack tear-off foils for "RED 2 Article no. 9891.160 Blaster protection package |
   |
| Sandblasting protection package RED 1 consisting of: Blasting helmet "RED 1" with nylon jacket Sandblasting suit nylon/cotton 1 pair of blasting gloves leather Breathing air filter/activated carbon filter "SAF Connecting hose for breathing air filter 10 m breathing air hose 1 pack inner discs for "RED 1 1 pack of wear discs for "RED 1 Article no. 9891.150 Blast protection package |
 |
