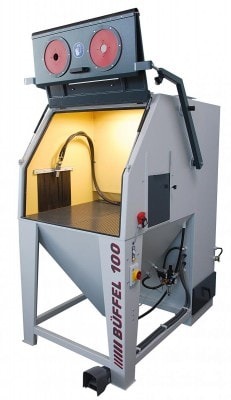

Büffel 100 | Injector sandblasting cabin | with integrated filter system
High-performance injector sandblasting cabin "Büffel 100" with an integrated cartridge filter system. Loading takes place via a front flap which enables loading with a forklift or crane. Sandblasting room dimensions (W x D xH): 1,000 x 900 x 850 mm. Loadability of the work grate max. 300 kg.
SAPI high-performance injector sandblasting cabin type "Buffalo 100" with integrated cartridge filter system
The suction sandblasting cabin of the "Büffel 100" type is a compact injector sandblasting cabin with an integrated cartridge filter suction system. Thanks to the permanently installed filter system, the sandblasting cabin only requires little space and can be easily moved using a lift truck or forklift.
Due to the compact design of the sandblasting cabin, it is immediately ready for use, only the compressed air and power supply has to be established and the sandblasting agent must be filled.
The integrated cartridge filter extraction system guarantees an optimal view of the sandblasting room. At the same time, optimal abrasive cleaning is achieved so that the abrasive can be reused as often as possible. By using the most modern fan technology, an extremely low power consumption (0.55 kW) is achieved, which makes the injector sandblasting cabin extremely economical.
Our high-performance injector sandblasting head (fresh sandblasting head) achieves a high negative pressure and thereby achieves a high sandblasting power, which enables fast, economical work with the negative pressure sandblasting cabin. The sandblasting nozzle is made of boron carbide and has an extremely long service life, even when using corundum sandblasting media.
To illuminate the sandblasting room, a modern, energy-saving LED light is attached to the cabin roof, protected from dust. This ensures optimal illumination of the sandblasting room of the sandblasting cabin and enables fast, fatigue-free and economical work.
Our sandblasting cabins are made of strong sheet steel, which enables the work grate to have a high load-bearing capacity.
All SAPI sandblasting cabins meet all current safety standards and are equipped with a door safety switch, which stops the sandblasting process immediately if the cabin is opened during the sandblasting process.
White corundum, corundum, glass beads, plastic granules, vegetable granules, etc. can be used as sandblasting media.
Technical specifications:
Overall dimensions | |
Total height: | 2.000 mm |
Total width: | 1.200 mm |
Total depth: | 1.400 mm |
Dimensions sandblasting room | |
Width: | 1.000 mm |
Depth: | 900 mm |
Height: | 850 mm |
Technical characteristics | |
Air consumption: | 600 - 2.000 l/min. |
Nozzle: |
Ø 8 mm Boron carbide sandblasting nozzle (optionally other diameters) |
Air nozzle: | Ø 3,5 mm |
Air pressure: | 2 bis 12 bar |
Load capacity of the grating: | ca. 300 kg |
Filter area: | 10 m² |
Electrical connection: | 400 Volt / 50 Hz (16 A Stecker) |
Power consumption: | ca. 80 Watt |
Color: | Basic body RAL 7035 light grey Add-on parts RAL 7016 anthracite grey |
Gewicht: | ca. 530 kg |
Technical changes reserved! |
Scope of delivery:
- "Buffalo 100" sandblasting cabin
- Fresh sandblasting head with boron carbide sandblasting nozzle
- Pressure regulator to adjust the sandblasting pressure with integrated water separator
- LED lighting, attached to the cabin roof to protect it from dust
- Door security switch
- On/off footswitch
- Rubber rosettes
- 1 pair of rubber gloves (emitter gloves)
Advantages of the SAPI high-performance injector sandblasting cabin:
- Universally applicable sandblasting cabin for economical, highly efficient execution of all sandblasting work
- Suitable for all common types of abrasive
- Extremely robust front flap system developed by practitioners for maximum durability and dust-tightness
- Compact, portable design with an integrated cartridge filter system
- Extremely bright, glare-free illumination of the sandblasting cabin interior with LED light
- Extremely economical price/performance ratio
- Movable with a pallet truck, wheelchair-accessible construction
Application areas:
- Rust removal
- Paint stripping
- Descaling
- Deburring
- Hardening
- Lapping
- Glass bead rays
- Aluminium and stainless steel processing
- Roughening surfaces
- Smoothing surfaces
Suitable abrasives:
- Corundum
- White corundum
- Ceramic beads
- Glass beads
- Broken glass
- Silicon carbide
- Garnet sand
- Plastic abrasives
- mineral reusable abrasives
Injector sandblasting cabins are not suitable for the use of metallic sandblasting media. A pressure blasting cabin is required for this.
SKU | 9413.100 |
---|---|
Delivery time | approx. 2 - 3 weeks |
Shipping | Shipping not included |
VAT | plus 19% VAT |
Integrated filter | Yes |
Door opening | Front flap |
Max. Load capacity | 300 kg |
Cabin Type | Injector |
Here you will find recommended accessories for the high-performance injector sandblasting cabin "Büffel 100". This accessory makes it easier for you to work with the sandblasting cabin and increases its efficiency.
The following accessories are available:

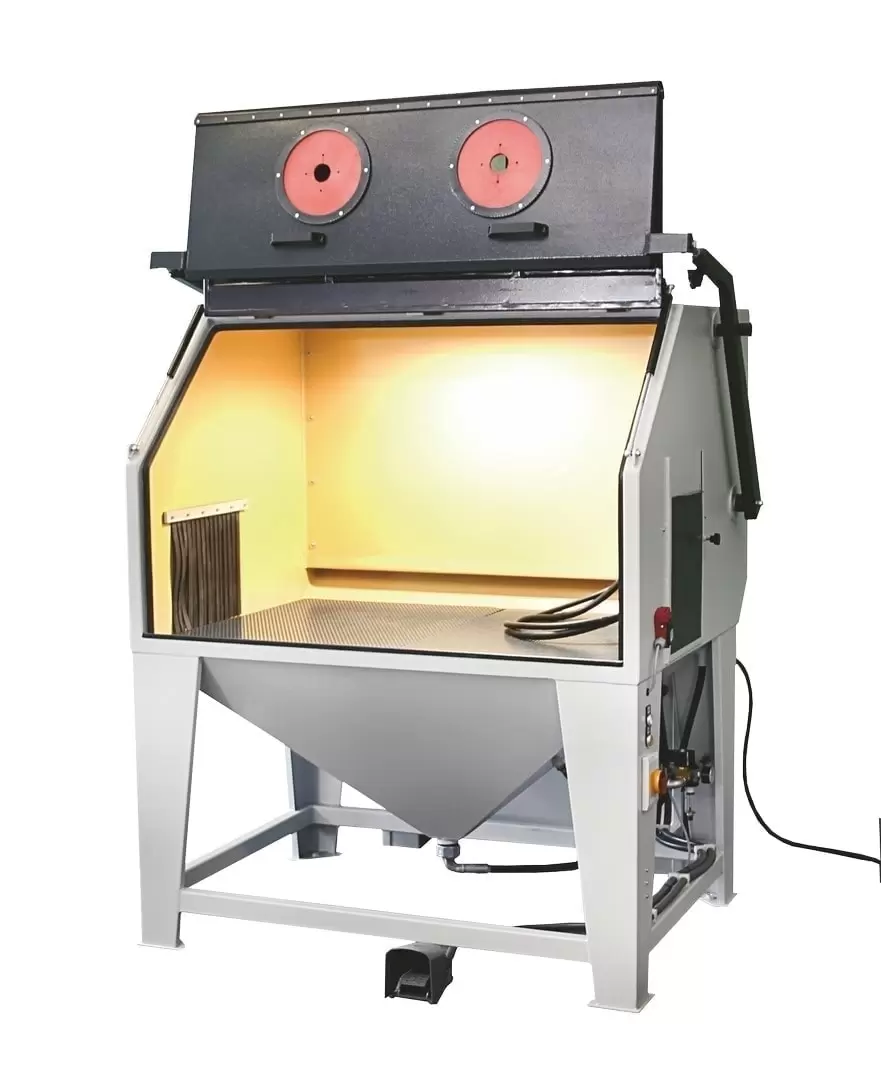

Rubber lining for Büffel 100: |
![]() |
Air blow gun: |
![]() |
Lateral insertion and push-through openings |
![]() |
Here you will find special accessories for the high-performance injector sandblasting cabin "Büffel 100". This can increase productivity and make work easier.
The following special accessories are available:
Swivel arm with sandblasting head holder: The sandblasting nozzle can be fixed in the sandblasting head holder. Thus, the worker has both hands free to hold and rotate the workpieces. The swivel arm can be adjusted and fixed in angle and inclination. 3944.021 |
![]() |
Turntable ø 500 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the sandblasting room when it is not needed. Max. Load 40 kg. 9841.250 |
![]() |
Turntable ø 600 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the sandblasting room when it is not needed. Max. Load 200 kg. 9841.260 |
![]() |
Rotary plate ø 600 mm integrated into the work grate: The turntable is permanently integrated in the work grate and is operated manually. Even if the turntable is not required, a flat work surface is available. Max. Load capacity of 200 kg. 9841.285 |
![]() |
Rubber gloves permanently installed: The rubber gloves are connected directly to the cabin by means of a flange ring. 3941.135 |
![]() |
After filter / secondary filter for cartridge filters: After-filter with filter class H14 - degree of separation> 99.995% - for the integrated cartridge filter. 9311.100 |
![]() |
There is also the option of equipping the sandblasting cabin with an automatic rotating basket or an automatic rotating plate. Extendable turntables are also available, these can either be extended halfway or completely extended using an additional loading trolley. We would be happy to advise you on this, speak to us.
Automatic turntable: With this function, workpieces can be sandblasted automatically. The desired sandblasting duration and the desired speed of the turntable can be set on the control cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.270 |
on request |
Automatic rotating basket: With this function, loose parts can be sandblasted automatically. The desired sandblasting duration and the desired speed of the rotating basket can be set on the switch cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.280 |
on request |
The turntable can be extended halfway: The turntable can be pulled out about halfway. This enables easier loading using a crane or forklift. |
|
The turntable can be moved out with a trolley: The turntable can be moved completely out of the cabin onto a trolley. The trolley can be moved to any point using castors. This enables the turntable to be equipped easily using a crane or forklift. |
|
Our delivery program also includes fully automatic special sandblasting cabins, which respond precisely to the needs of our customers. We would be happy to advise you, speak to us.
