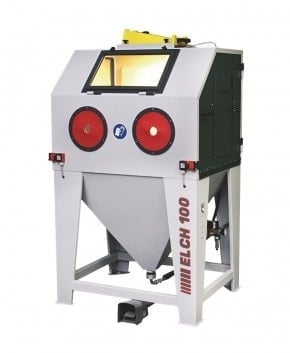

Elch 100 | Injector sandblasting cabin
We recommend the Elch 100 sandblasting cabin for sandblasting medium-sized parts. The equipment takes place via two side doors on the right and left side which is provided with push-in and push-through openings. Sandblasting room dimensions (W x D x H): 1,000 x 700 x 750 mm.
SAPI high-performance injector sandblasting cabin type "Elch 100"
The suction sandblasting cabin of the "Elch 100" type is a compact injector sandblasting cabin. The sandblasting cabin takes up little space and can be easily moved using a lift truck or forklift.
Our high-performance injector sandblasting head (fresh sandblasting head) creates high negative pressure and thereby achieves a high sandblasting power, which enables fast, economical work with the negative pressure sandblasting cabin. The sandblasting nozzle is made of boron carbide and has an extremely long service life, even when using corundum sandblasting media.
Our sandblasting cabins of the "Elch" series are equipped with lateral insertion and push-through openings as standard, this enables the processing of long parts and bar material.
To illuminate the sandblasting room, a modern, energy-saving LED light is attached to the cabin roof, protected from dust. This ensures optimal illumination of the sandblasting room of the sandblasting cabin and enables fast, fatigue-free and economical work.
Our sandblasting cabins are made of strong sheet steel, which enables the work grate to have a high load-bearing capacity.
All SAPI sandblasting cabins meet all current safety standards and are equipped with a door safety switch, which stops the sandblasting process immediately if the cabin is opened during the sandblasting process.
An additional extraction system is required for optimal operation of the sandblasting cabin. There are 3 different versions to choose from, depending on the purpose and duration of use.
The extraction system ensures optimal visibility in the sandblasting room, a dust-free work environment and is responsible for cleaning the sandblasting media used.
By using the right filter system, optimal abrasive cleaning is achieved in order to guarantee the maximum service life of the abrasive used.
White corundum, corundum, glass beads, plastic granules, vegetable granules, etc. can be used as sandblasting media.
Technical specifications:
| Abmessungen Gesamt | |
| Total height: | 1.650 mm |
| Total width: | 1.100 mm |
| Total depth: | 900 mm |
| Abmessungen Strahlraum | |
| Width: | 1.000 mm |
| Depth: | 700 mm |
| Height: | 750 mm |
| Technical characteristics | |
| Air consumption: | 600 - 1.000 l/min. |
Nozzle: |
Ø 8 mm Boron carbide nozzle (optionally other diameters) |
| Air nozzle: | Ø 3,5 mm |
| Air pressure: | 2 bis 12 bar |
| Load capacity of the grating: | ca. 150 kg |
| Electrical connection: | 230 Volt / 50 Hz |
| Power consumption: | ca. 40 Watt |
| Color: | Basic body RAL 7035 light grey Add-on parts RAL 7016 anthracite grey |
| Weight: | ca. 200 kg |
| Technical changes reserved! | |
Scope of delivery:
- Sandblasting cabin "Elch 100"
- Injector sandblasting head with boron carbide nozzle
- Pressure regulator to adjust the sandblasting pressure with integrated water separator
- LED lighting, attached to the cabin roof to protect it from dust
- Door security switch
- On/off footswitch
- Rubber rosettes
- 1 pair of rubber gloves (emitter gloves)
Advantages of the SAPI high-performance injector sandblasting cabin:
- Universally applicable blasting cabin for economical, highly efficient execution of all sandblasting work
- Suitable for all common types of abrasive
- generous, dust-proof side door for easy loading of the blasting cabin
- Compact, portable design
- Extremely bright, glare-free illumination of the blasting cabin interior with LED light
- Extremely economical price/performance ratio
- Movable with a pallet truck, wheelchair-accessible construction
Application areas:
- Rust removal
- Paint stripping
- Descaling
- Deburring
- Hardening
- Lapping
- Glass bead rays
- Aluminium and stainless steel processing
- Roughening surfaces
- Smoothing surfaces
Suitable abrasives:
- Corundum
- White Corundum
- Ceramic beads
- Glass beads
- Broken glass
- Silicon carbide
- Garnet sand
- Plastic abrasives
- mineral reusable abrasives
Injector sandblasting cabins are not suitable for the use of metallic blasting media. A pressure sandblasting cabin is required for this.
| SKU | 9412.100 |
|---|---|
| Delivery time | approx. 2 - 3 weeks |
| Shipping | Shipping not included |
| VAT | plus 19% VAT |
| Integrated filter | No |
| Door opening | Side door right+left |
| Max. Load capacity | 150 kg |
| Cabin Type | Injector |
Here you will find recommended accessories for the high-performance injector sandblasting cabin "Elch 100". This accessory makes it easier for you to work with the blasting cabin and increases its efficiency.
The following accessories are available:
|
Rubber lining for Widder 70: |
 |
|
Air blow gun: |
 |
Here you will find special accessories for the high-performance injector sandblasting cabin "Elch 100". This can increase productivity and make work easier.
The following special accessories are available
| Swivel arm with sandblasting head holder: The sandblasting nozzle can be fixed in the sandblasting head holder. Thus, the worker has both hands free to hold and rotate the workpieces. The swivel arm can be adjusted and fixed in angle and inclination. 3944.021 |
 |
| Turntable ø 500 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the blasting room when it is not needed. Max. Load 40 kg. 9841.250 |
 |
| Turntable ø 600 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the sandblasting room when it is not needed. Max. Load capacity of 200 kg. 9841.260 |
 |
| Rubber gloves permanently installed: The rubber gloves are connected directly to the cabin by means of a flange ring. 3941.135 |
 |
There is also the option of equipping the sandblasting cabin with an automatic rotating basket or an automatic rotating plate. Extendable turntables are also available, these can either be extended halfway or completely extended using an additional loading trolley. We would be happy to advise you on this, speak to us.
| Automatic turntable: With this function, workpieces can be sandblasted automatically. The desired sandblasting duration and the desired speed of the turntable can be set on the control cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.270 |
on request |
| Automatic rotating basket: With this function, loose parts can be sandblasted automatically. The desired sandblasting duration and the desired speed of the rotating basket can be set on the switch cabinet. After the set time has elapsed, the blasting process stops automatically. 9841.280 |
on request |
Our delivery program also includes fully automatic special sandblasting cabins, which respond precisely to the needs of our customers. We would be happy to advise you, speak to us.
For the optimal, economical operation of the "Elch 100" sandblasting cabin, an extraction system is required, which ensures a negative pressure in the sandblasting room.
The filter system cleans the used sandblasting media and at the same time ensures a good view in the sandblasting room and a dust-free work environment.
Depending on the purpose and duration of use, different extraction systems are available:
|
"Turbo II" suction system |
 |
|
Pocket filter suction system "TFA I" |
 |
|
Cartridge filter "PC 1" |
 |
We would be happy to advise you on the selection of the right extraction system, talk to us!
