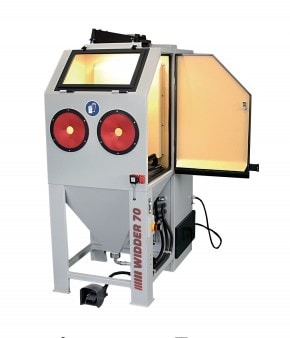

Widder 70 | Injector sandblasting cabin | integrated cartridge filter system
We recommend the Widder 70 sandblasting cabin for blasting small parts. The equipment is fitted through a side door on the right-hand side. Sandblasting room dimensions (W x D x H): 700 x 600 x 600 mm.
Scope of delivery:
- Sandblasting cabin "Widder 70"
- Integrated cartridge filter with 10 m² filter surface and permanent cleaning by means of a compressed air blast
- Injector jet head with boron carbide jet nozzle
- Pressure regulator to adjust the jet pressure with integrated water separator
- LED lighting, attached to the cabin roof to protect it from dust
- Door security switch
- On/off footswitch
- Rubber rosettes
- 1 pair of rubber gloves (emitter gloves)
Advantages of the SAPI high-performance injector sandblasting cabin:
- Universally applicable sandblasting cabin for economical, highly efficient execution of all sandblasting work
- Integrated cartridge filter with permanent cleaning with a blast of compressed air
- Suitable for all common types of abrasive
- generous, dust-proof side door for easy loading of the sandblasting cabin
- Compact, portable design with an integrated cartridge filter system
- Extremely bright, glare-free illumination of the sandblasting cabin interior with LED light
- Extremely economical price/performance ratio
- Movable with a pallet truck, wheelchair-accessible construction
Application areas:
- Rust removal
- Paint stripping
- Descaling
- Deburring
- Hardening
- Lapping
- Glass bead rays
- Aluminium and stainless steel processing
- Roughening surfaces
- Smoothing surfaces
Suitable abrasives:
- Corundum
- White Corundum
- Ceramic beads
- Glass beads
- Broken glass
- Silicon carbide
- Garnet sand
- Plastic abrasives
- Mineral reusable abrasives
Injector sandblasting cabins are not suitable for the use of metallic sandblasting media. A pressure sandblasting cabin is required for this.
| SKU | 9411.075 |
|---|---|
| Delivery time | approx. 2 - 3 weeks |
| Shipping | Shipping not included |
| VAT | plus 19% VAT |
| Integrated filter | Yes |
| Door opening | Side door right |
| Max. Load capacity | 150 kg |
| Cabin Type | Injector |
Here you will find recommended accessories for the high-performance injector sandblasting cabin "Widder 70". This accessory makes it easier for you to work with the blasting cabin and increases its efficiency.
The following accessories are available:
|
Rubber lining for Widder 70: |
 |
|
Air blow gun: |
 |
Here you will find special accessories for the high-performance injector sandblasting cabin "Widder 70". This can increase productivity and make work easier.
The following special accessories are available:
| Swivel arm with sandblasting head holder: The sandblasting nozzle can be fixed in the sandblasting head holder. Thus, the worker has both hands free to hold and rotate the workpieces. The swivel arm can be adjusted and fixed in angle and inclination. 3944.020 |
 |
| Turntable ø 400 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the sandblasting room when it is not needed. Max. Load 40 kg. 9841.240 |
 |
| Rubber gloves permanently installed: The rubber gloves are connected directly to the cabin by means of a flange ring. 3941.135 |
 |
| After filter / secondary filter for cartridge filters: After filter with filter class H14 - degree of separation> 99.995% - for the integrated cartridge filter. 9311.100 |
 |
-
