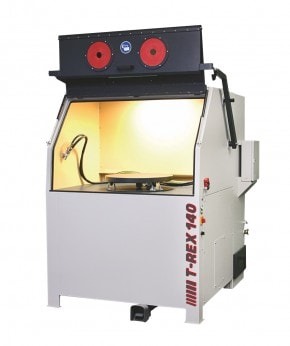

T-REX 140 | High-performance pressure / injector sandblasting cabin | Double power
High-performance pressure/injector sandblasting cabin "T-Rex 140 Double Power" with an integrated cartridge filter system. 2 blasting processes in one blasting cabin, pressure blasting for maximum performance, injector blasting for simple blasting tasks. Loading takes place via a front flap which enables loading with a forklift or crane. Blasting room dimensions (W x D xH): 1,350 x 1,000 x 850 mm. Loadability of the work grate max. 300 kg.
SAPI High-Performance Suction Blast Cabinet Type "T-Rex 140 Dual Power" with Integrated Cartridge Filter System.
Pressure blasting method and suction blasting method combined in one blasting system. One blast cabinet for all applications!
The pressure/suction blast cabinet type "T-Rex 140 Dual Power" can be used either in pressure blasting mode or suction blasting mode. This makes it possible to carry out even the heaviest blasting tasks. The integrated suction blasting method can be used for lighter blasting tasks, saving expensive compressed air. The selection of the blasting method (pressure blasting or suction blasting) is easily done via a selector switch at the base of the cabinet.
The compact, combined pressure/suction blast cabinet has an integrated cartridge filter dust extraction unit. Thanks to the permanently installed filter system, the blast cabinet requires only a small footprint and is easily portable using a pallet truck or forklift.
Due to the compact design of the blast cabinet, it is immediately ready for use – only the compressed air and power supply need to be connected and blasting abrasive needs to be filled in.
The integrated cartridge filter dust extraction unit ensures optimal visibility in the blasting chamber. At the same time, optimal abrasive cleaning is achieved to reuse the blasting media as often as possible. By using state-of-the-art fan technology, an extremely low power consumption (0.75 kW) is achieved, making the suction blast cabinet extremely economical.
Our high-performance suction blast head (fresh blast head) generates a high vacuum and thus achieves a high blasting performance, enabling fast, economical work with the suction blast cabinet. The blast nozzle is made of boron carbide and achieves extremely long service life, even when using corundum blasting abrasive. The pressure blast head is also equipped with a boron carbide blast nozzle for maximum service life.
To illuminate the blasting chamber, a modern, energy-saving LED light is dust-protected and mounted on the cabinet roof. This ensures optimal illumination of the blast cabinet's blasting chamber and enables fast, fatigue-free and economical work.
Our blast cabinets are manufactured from heavy-gauge steel sheet, which allows a high load capacity of the working grate.
All SAPI blast cabinets comply with all current safety standards and are equipped with a door safety switch that immediately stops the blasting process if the cabinet is opened during operation.
Suitable blasting abrasives include metallic blasting abrasives, cast steel, steel grit, chilled iron, stainless steel blasting abrasive, corundum, glass beads, plastic granulate, plant-based granulates, etc.
Technical Data:
| Overall Dimensions | |
| Total height: | 2,050 mm |
| Total width: | 1,650 mm |
| Total depth: | 1,650 mm |
| Blasting Chamber Dimensions | |
| Width: | 1,350 mm |
| Depth: | 1,000 mm |
| Height: | 850 mm |
| Technical Properties | |
| Air consumption: | 600 - 2,000 l/min |
Blast nozzle: | Ø 10 mm boron carbide suction blast nozzle |
| Air nozzle: | Ø 5 mm |
| Air pressure: | 2 to 12 bar |
| Grate load capacity: | approx. 300 kg |
| Filter area: | 20 m² |
| Electrical connection: | 400 Volt / 50 Hz (16 A plug) |
| Power consumption: | approx. 850 Watt |
| Paint finish: | Main body RAL 7035 light grey Attached parts RAL 7016 anthracite grey |
| Weight: | approx. 780 kg |
| Subject to technical changes! | |
Scope of Delivery:
- Blast Cabinet "T-Rex 140 Dual Power"
- Integrated cartridge filter with 20 m² filter area and permanent cleaning by compressed air pulse
- Rubber lining of the blasting chamber
- Fresh blast head with boron carbide blast nozzle Ø 10 mm
- Boron carbide pressure blast nozzle Ø 6 mm
- Pressure regulator for adjusting the blasting pressure with integrated water separator
- LED lighting, dust-protected and mounted on the cabinet roof
- Door safety switch
- On/off foot switch
- Rubber rosettes
- 1 pair of rubber gloves (blasting gloves)
Advantages of the SAPI High-Performance Pressure/Suction Blast Cabinet:
- Universally applicable blast cabinet for economical, highly efficient execution of all sandblasting work
- 2 blasting systems combined in one unit: pressure blasting method and suction blasting method
- Integrated cartridge filter with permanent cleaning by compressed air pulse
- Suitable for all common types of blasting abrasives
- Extremely robust front flap system developed by professionals for maximum durability and dust-tightness
- Compact, portable design with integrated cartridge filter system
- Extremely bright, glare-free illumination of the blast cabinet interior with LED light
- Outstanding price-performance ratio
- Portable by pallet truck, accessible design for underride
Application Areas:
- Derusting
- Paint removal
- Descaling
- Deburring
- Hardening
- Lapping
- Glass bead blasting
- Aluminium and stainless steel processing
- Surface roughening
- Surface smoothing
Suitable Blasting Abrasives:
- Cast steel shot
- Steel grit
- Chilled iron grit
- Stainless steel blasting abrasive
- Normal corundum
- White corundum
- Ceramic beads
- Glass beads
- Crushed glass
- Silicon carbide
- Garnet sand
- Plastic blasting abrasive
- Mineral reusable blasting abrasives
- Metallic blasting abrasives
Here you will find recommended accessories for the high-performance pressure/injector blasting cabin "T-Rex 140 Double Power". This accessory makes it easier for you to work with the blasting cabin and increases its efficiency.
The following accessories are available:
Air blow gun |  |
Lateral insertion and push-through openings |  |
Here you will find special accessories for the high-performance pressure/injector blasting cabin "T-Rex 140 Double Power". This can increase productivity and make work easier.
The following special accessories are available:
| Swivel arm with sandblasting nozzle holder: The sandblasting nozzle can be fixed in the sandblasting head holder. Thus, the worker has both hands free to hold and rotate the workpieces. The swivel arm can be adjusted and fixed in angle and inclination. 3944.021 |  |
| Turntable ø 500 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the blasting room when it is not needed. Max. Load 40 kg. 9841.250 |  |
| Turntable ø 600 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the blasting room when it is not needed. Max. Load capacity of 200 kg. 9841.260 |  |
| Rotary plate ø 600 mm sunk into the work grate: The turntable is permanently integrated in the work grate and is operated manually. Even if the turntable is not needed, a flat work surface is available. Max. Load capacity of 200 kg. 9841.285 |  |
| Rubber gloves permanently installed: The rubber gloves are connected directly to the cabin by means of a flange ring. 3941.135 |  |
| Post filter / secondary filter for cartridge filters: Post filter with filter class H14 - degree of separation> 99.995% - for the integrated cartridge filter. 9311.100 |  |
There is also the option of equipping the blasting cabin with an automatic rotating basket or an automatic rotating plate. Extendable turntables are also available, these can either be extended halfway or completely extended using an additional loading trolley. We would be happy to advise you on this, speak to us.
| Automatic turntable: With this function, workpieces can be blasted automatically. The desired sandblasting duration and the desired speed of the turntable can be set on the control cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.270 |
on request |
| Automatic rotating basket: With this function, loose parts can be blasted automatically. The desired sandblasting duration and the desired speed of the rotating basket can be set on the switch cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.280 |
on request |
| The turntable can be extended halfway: The turntable can be pulled out about halfway. This enables easier loading using a crane or forklift. |
|
| The turntable can be moved out with a trolley: The turntable can be moved completely out of the cabin onto a trolley. The trolley can be moved to any point using castors. This enables the turntable to be equipped easily using a crane or forklift. |
|
Our delivery program also includes fully automatic special sandblasting cabins, which respond precisely to the needs of our customers. We would be happy to advise you, speak to us.
| SKU | 9423.140 |
|---|---|
| Delivery time | approx. 2 - 3 weeks |
| Shipping | Shipping not included |
| VAT | plus 19% VAT |
| Integrated filter | Yes |
| Door opening | Front flap |
| Max. Load capacity | 300 kg |
| Cabin Type | comb. pressure/injector |
