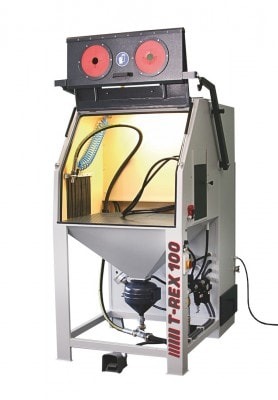

T-Rex 100 | High-performance pressure & injector sandblasting cabin | Double power

€12,245.10 €10,290.00
Shipping not included
plus 19% VAT
Delivery time

High-performance pressure/injector sandblasting cabin "T-Rex 100 Double Power" with an integrated cartridge filter system. 2 sandblasting processes in one blasting cabin, pressure blasting for maximum performance, injector sandblasting for simple sandblasting tasks. Loading takes place via a front flap which enables loading with a forklift or crane. Blasting room dimensions (W x D xH): 1,000 x 800 x 850 mm. Loadability of the work grate max. 300 kg.

T-Rex 100 | High-performance pressure & injector sandblasting cabin | Double power is available to buy in increments of 1

SAPI high-performance injector sandblasting cabin type "T-Rex 100 Double Power" with an integrated cartridge filter system.

Pressure sandblasting process and injector blasting process combined in one blasting system. A sandblasting cabin for all purposes!

The pressure/injector sandblasting cabin of the "T-Rex 100 Double Power" type can be used either in the pressure sandblasting processor in the injector blasting process. This makes it possible to carry out even the heaviest sandblasting work. The injector sandblasting process, which is also integrated, can be used for lighter sandblasting tasks, which saves expensive compressed air. The selection of the sandblasting process (pressure sandblasting or injector blasting) is made simply by means of a selector switch on the booth foot.

The compact, combined pressure/injector sandblasting cabin has an integrated cartridge filter suction system. Thanks to the permanently installed filter system, the sandblasting cabin only requires little space and can be easily moved using a lift truck or forklift.

Due to the compact design of the sandblasting cabin, it is immediately ready for use, only the compressed air and power supply has to be established and the sandblasting agent must be filled.

The integrated cartridge filter extraction system guarantees an optimal view of the sandblasting room. At the same time, optimal abrasive cleaning is achieved so that the abrasive can be reused as often as possible. By using the most modern fan technology, an extremely low power consumption (0.55 kW) is achieved, which makes the injector sandblasting cabin extremely economical.

Our high-performance injector sandblasting head (fresh blasting head) achieves a high negative pressure and thus achieves a high sandblasting power, which enables fast, economical work with the negative pressure sandblasting cabin. The blasting nozzle is made of boron carbide and has an extremely long service life, even when using corundum sandblasting media. The pressure sandblasting head is also equipped with a boron carbide sandblasting nozzle for maximum service life.

To illuminate the sandblasting room, a modern, energy-saving LED light is attached to the cabin roof, protected from dust. This ensures optimal illumination of the sandblasting room of the blasting cabin and enables fast, fatigue-free and economical work.

Our sandblasting cabins are made of strong sheet steel, which enables a high load-bearing capacity of the work grate.

All SAPI sandblasting cabins meet all current safety standards and are equipped with a door safety switch, which stops the sandblasting process immediately if the cabin is opened during the sandblasting process.

Metallic abrasives, cast steel, steel shot, chilled cast iron, stainless steel abrasives, corundum, glass beads, plastic granules, vegetable granules, etc. can be used as blasting media.



Technical specifications:


Overall dimensions
Total height: 2.050 mm
Total width: 1.350 mm
Total depth: 1.450 mm
Abmessungen Strahlraum
Width: 1.000 mm
Depth: 800 mm
Height: 850 mm
Technical characteristics
Air consumption:  600 - 2.000 l/min.

Sandblasting nozzle:

Ø 10 mm boron carbide injector sandblasting nozzle
ø 6 mm boron carbide pressure sandblasting nozzle
(optionally other diameters)

Air nozzle:   Ø 5  mm
Air pressure:   from 2 to 12 bar
Load capacity:   about. 300 kg
Filter area:   10 m²
Electrical connection:   400 Volt / 50 Hz (16 A plug)
Power consumption:  ca. 450 Watt
Painting: Basic body RAL 7035 light grey
Add-on parts RAL 7016 anthracite grey
Weight: ca. 545 kg
Technical changes reserved!



Scope of delivery:

  • "T-Rex 100 Double Power" blasting cabinIntegrated cartridge filter with 10 m² filter surface and permanent cleaning by means of a compressed air blast
  • Rubber lining of the blasting room
  • Fresh blasting head with boron carbide blasting nozzle ø 10 mm
  • Boron carbide pressure sandblasting nozzle ø 6 mm
  • Pressure regulator to adjust the sandblasting pressure with integrated water separator
  • LED lighting, attached to the cabin roof to protect it from dust
  • Door security switch
  • On/off footswitch
  • Rubber rosettes
  • 1 pair of rubber gloves (emitter gloves)


Advantages of the SAPI high-performance pressure/injector blasting cabin:

  • Universally applicable blasting cabin for economical, highly efficient execution of all sandblasting work
  • 2 blasting systems combined in one system, pressure blasting process and injector blasting process
  • Integrated cartridge filter with permanent cleaning with a blast of compressed air
  • Suitable for all common types of abrasive
  • Extremely robust front flap system developed by practitioners for maximum durability and dust-tightness
  • Compact, portable design with an integrated cartridge filter system
  • Extremely bright, glare-free illumination of the blasting cabin interior with LED light
  • Extremely economical price/performance ratio
  • Movable with a pallet truck, wheelchair-accessible construction


Application areas:

  • Rust removal
  • Paint stripping
  • Descaling
  • Deburring
  • Hardening
  • Lapping
  • Glass bead rays
  • Aluminium and stainless steel processing
  • Roughening surfaces
  • Smoothing surfaces


Suitable abrasives:

  • Cast steel
  • Steel shot
  • Chilled cast iron
  • Stainless steel abrasives
  • Corundum
  • Corundum
  • Ceramic beads
  • Glass bead
  • Broken glass
  • Silicon carbide
  • Garnet sand
  • Plastic abrasives
  • mineral reusable abrasives
  • metallic abrasives

Here you will find recommended accessories for the high-performance pressure/injector blasting cabin "T-Rex 100 Double Power". This accessory makes it easier for you to work with the blasting cabin and increases its efficiency.



The following accessories are available:

Air gun:
For blowing off the blasted parts and to clean debris from cabin walls..
3985.015

Luftausblasepistole Strahlkabine

Lateral insertion and push-through openings
Ideal for long parts that are pushed through the cabin during the sandblasting process. A rubber curtain prevents dust from escaping. Dimensions 300x300 mm.
9842.010

seitliche Durchschiebeöffnungen Strahlkabine

Here you will find special accessories for the high-performance pressure/injector blasting cabin "T-Rex 100 Double Power". This can increase productivity and make work easier.



The following special accessories are available:

Swivel arm with sandblasting head holder:
The sandblasting nozzle can be fixed in the sandblasting head holder. Thus, the worker has both hands free to hold and rotate the workpieces. The swivel arm can be adjusted and fixed in angle and inclination.
3944.021
Schwenkarm mit Stahlkopfhalterung Strahlkabine
Turntable ø 500 mm, manually operated:
Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the blasting room when it is not needed. Max. Load capacity 40 kg.
9841.250
Drehteller 500 mm Strahlkabine
Turntable ø 600 mm, manually operated:
Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the blasting room when it is not needed. Max. Load capacity of 200 kg.
Artikel-Nr. 9841.260
Drehteller 600 mm Strahlkabine
Rotary plate ø 600 mm sunk into the work grate:
The turntable is permanently integrated in the work grate and is operated manually. Even if the turntable is not needed, a flat work surface is available.
Max. Load capacity of 200 kg.
9841.285
Drehteller 600 mm im Arbeitsrost versenkt
Gummihandschuhe fest eingebaut:
Die Gummihandschuhe werden mittels eines Flanschringes direkt mit der Kabine verbunden.
Artikel-Nr. 3941.135
Gummihandschuhe Strahlkabine fest eingebaut
Post filter / secondary filter for cartridge filters:
Post-filter with filter class H14 - degree of separation> 99.995% - for the integrated cartridge filter.
9311.100
Nachfilter Patronenfilter Strahlkabine



There is also the option of equipping the sandblasting cabin with an automatic rotating basket or an automatic rotating plate. Extendable turntables are also available, these can either be extended halfway or completely extended using an additional loading trolley. We would be happy to advise you on this, contact to us.

Automatic turntable:
With this function, workpieces can be blasted automatically. The desired blasting duration and the desired speed of the turntable can be set on the control cabinet. After the set time has elapsed, the blasting process stops automatically.
9841.270

Drehteller automatisch Strahlkabine

on request

Automatic rotating basket:
With this function, loose parts can be blasted automatically. The desired blasting duration and the desired speed of the rotating basket can be set on the switch cabinet. After the set time has elapsed, the sandblasting process stops automatically.
9841.280

Drehkorb automatisch Strahlkabine

on request

Turntable can be extended halfway:
The turntable can be pulled out about halfway. This enables easier loading using a crane or forklift.

Injektor-Strahlkabine Drehteller halb herausfahrbar
on request

Turntable can be moved out with the carriage:
The turntable can be moved completely out of the cabin onto a trolley. The trolley can be moved to any point using castors. This enables the turntable to be equipped easily using a crane or forklift.

Strahlkabine Drehteller herausfahrbar
on request



Unser Lieferprogramm umfasst ebenfalls vollautomatische Sonder-Strahlkabinen, welche genau auf die Bedürfnisse unserer Kunden eingehen. Gerne Beraten wir Sie, sprechen Sie uns an.

Only registered users can write questions. Please Sign in or Create an account
More Information
SKU9423.100
Delivery timeapprox. 2 - 3 weeks
Shipping Shipping not included
VAT plus 19% VAT
Integrated filterYes
Door openingFront flap
Max. Load capacity300 kg
Cabin Typecomb. pressure/injector
