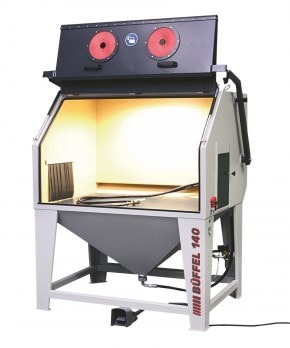

SAPI high-performance injector sandblasting cabin type "Buffalo 140"

The suction sandblasting cabin of the type "Büffel 140" is a compact injector sandblasting cabin. The sandblasting cabin takes up little space and is easy to move using a lift truck or forklift.

Our high-performance injector sandblasting head (fresh sandblasting head) achieves a high negative pressure and thereby achieves a high blasting power, which enables fast, economical work with the negative pressure sandblasting cabin. The sandblasting nozzle is made of boron carbide and has an extremely long service life, even when using corundum sandblasting media.

To illuminate the sandblasting room, a modern, energy-saving LED light is attached to the cabin roof, protected from dust. This ensures optimal illumination of the sandblasting room of the sandblasting cabin and enables fast, fatigue-free and economical work.

Our sandblasting cabins are made of strong sheet steel, which enables the work grate to have a high load-bearing capacity.

All SAPI sandblasting cabins meet all current safety standards and are equipped with a door safety switch, which stops the sandblasting process immediately if the cabin is opened during the sandblasting process.

An additional extraction system is required for optimal operation of the sandblasting cabin. There are two different versions to choose from, depending on the purpose and duration of use.

The extraction system ensures optimal visibility in the sandblasting room, a dust-free work environment and is responsible for cleaning the sandblasting media used.

By using the right filter system, optimal abrasive cleaning is achieved in order to guarantee the maximum service life of the abrasive used.

Corundum, white corundum, glass beads, plastic granules, vegetable granules, etc. can be used as sandblasting media.

Technische Daten:


Overall dimensions
Total height:	1.700 mm
Total width:	1.600 mm
Total depth:	1.000 mm
Dimensions sandblasting room
Width:	1.350 mm
Depth:	950 mm
Height:	900 mm
Technical characteristics
Air consumption:	600 - 2.000 l/min.
Nozzle:	Ø 8 mm Boron carbide nozzle nozzle (optionally other diameters)
Air nozzle:	Ø 3,5 mm
Air pressure:	2 bis 12 bar
The load capacity of the grating:	ca. 300 kg
Electrical connection:	230 V / 50 Hz
Power consumption:	ca. 40 Watt
Color:	Basic body RAL 7035 light grey Add-on parts RAL 7016 anthracite grey
Weight:	ca. 600 kg
Technical changes reserved!

Scope of delivery:

"Buffalo 140" sandblasting cabin
Fresh blasting head with boron carbide sandblasting nozzle
Pressure regulator to adjust the sandblasting pressure with integrated water separator
LED lighting, attached to the cabin roof to protect it from dust
Door security switch
On/off footswitch
Rubber rosettes
1 pair of rubber gloves (emitter gloves)

Advantages of the SAPI high-performance injector sandblasting cabin:

Universally applicable blasting cabin for economical, highly efficient execution of all sandblasting work
Suitable for all common types of abrasive
Extremely robust front flap system developed by practitioners for maximum durability and dust-tightness
Compact, portable design with an integrated cartridge filter system
Extremely bright, glare-free illumination of the blasting cabin interior with LED light
Extremely economical price/performance ratio
Movable with a pallet truck, wheelchair-accessible construction

Application areas:

Rust removal
Paint stripping
Descaling
Deburring
Hardening
Lapping
Glass bead rays
Aluminium and stainless steel processing
Roughening surfaces
Smoothing surfaces

Suitable abrasives:

Corundum
White corundum
Ceramic beads
Glass beads
Broken glass
Silicon carbide
Garnet sand
Plastic abrasives
mineral reusable abrasives

Injector sandblasting cabins are not suitable for the use of metallic sandblasting media. A pressure blasting cabin is required for this.

More Information

More Information
SKU	9413.140
Delivery time	approx. 2 - 3 weeks
Shipping	Shipping not included
VAT	plus 19% VAT
Integrated filter	No
Door opening	Front flap
Max. Load capacity	300 kg
Cabin Type	Injector

Questions

Only registered users can write questions. Please Sign in or Create an account

Recommended accessories

Here you will find recommended accessories for the high-performance injector sandblasting cabin "Büffel 140". This accessory makes it easier for you to work with the blasting cabin and increases its efficiency.

The following accessories are available:

Rubber lining for Büffel 140: This prevents the blasting agent from crashing pointlessly on the cabin wall (up to 50% sandblasting agent savings). 9840.050
Air blow gun: For blowing off the sandblasted parts and the cabin walls. 3985.015
Lateral insertion and push-through openings Ideal for long parts that are pushed through the cabin during the sandblasting process. A rubber curtain prevents dust from escaping. Dimensions 300x300 mm. 9842.010

Special accessories

Here you will find special accessories for the high-performance injector sandblasting cabin "Büffel 140". This can increase productivity and make work easier.

The following special accessories are available:

Swivel arm with sandblasting head holder: The sandblasting nozzle can be fixed in the sandblasting head holder. Thus, the worker has both hands free to hold and rotate the workpieces. The swivel arm can be adjusted and fixed in angle and inclination. 3944.020
Turntable ø 500 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the blasting room when it is not needed. Max. Load 40 kg. 9841.250
Turntable ø 600 mm, manually operated: Enables the easier processing of heavy, unwieldy parts. The turntable is mobile and can be removed from the sandblasting room when it is not needed. Max. Load 200 kg. 9841.260
Rotary plate ø 600 mm integrated into the work grate: The turntable is permanently integrated in the work grate and is operated manually. Even if the turntable is not required, a flat work surface is available. Max. Load capacity of 200 kg. 9841.285
Rubber gloves permanently installed: The rubber gloves are connected directly to the cabin by means of a flange ring. 3941.135

There is also the option of equipping the sandblasting cabin with an automatic rotating basket or an automatic rotating plate. Extendable turntables are also available, these can either be extended halfway or completely extended using an additional loading trolley. We would be happy to advise you on this, speak to us.

Automatic turntable: With this function, workpieces can be sandblasted automatically. The desired blasting duration and the desired speed of the turntable can be set on the control cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.270	on request
Automatic rotating basket: With this function, loose parts can be sandblasted automatically. The desired sandblasting duration and the desired speed of the rotating basket can be set on the switch cabinet. After the set time has elapsed, the sandblasting process stops automatically. 9841.280	on request
The turntable can be extended halfway: The turntable can be pulled out about halfway. This enables easier loading using a crane or forklift.	on request
The turntable can be moved out with a trolley: The turntable can be moved completely out of the cabin onto a trolley. The trolley can be moved to any point using castors. This enables the turntable to be equipped easily using a crane or forklift.	on request

Our delivery program also includes fully automatic special sandblasting cabins, which respond precisely to the needs of our customers. We would be happy to advise you, speak to us.

Extraction systems

For the optimal, economical operation of the "Büffel 140" sandblasting cabin, an extraction system is required, which ensures a negative pressure in the sandblasting room.

The filter system cleans the used sandblasting media and at the same time ensures a good view in the sandblasting room and a dust-free work environment.

Depending on the purpose and duration of use, different extraction systems are available:

Pocket filter suction system "TFA I" For daily sandblasting work between 1 - 4 hours. The compact filter system in a stable sheet steel housing. Pocket filter inserts with 4.5 m² filter surface. Air output 600 m³ / h, motor output 0.55 kW, power connection 400 V / 50 Hz. 3241.110

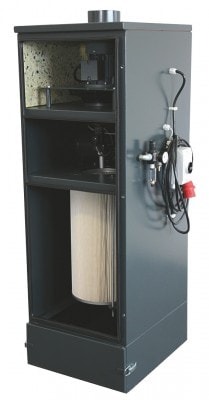

Cartridge filter "PC 1" For daily sandblasting work from 4 hours, also suitable for shift work. The compatible filter system in a stable radiant sheet housing. Filter cartridge with 10 m² filter surface and permanent cleaning using a compressed air blast. Air output approx. 900 m³ / h, motor output 0.55 kW, power connection 400 V / 50 Hz. 9311.010

We would be happy to advise you on the selection of the right extraction system, talk to us!
