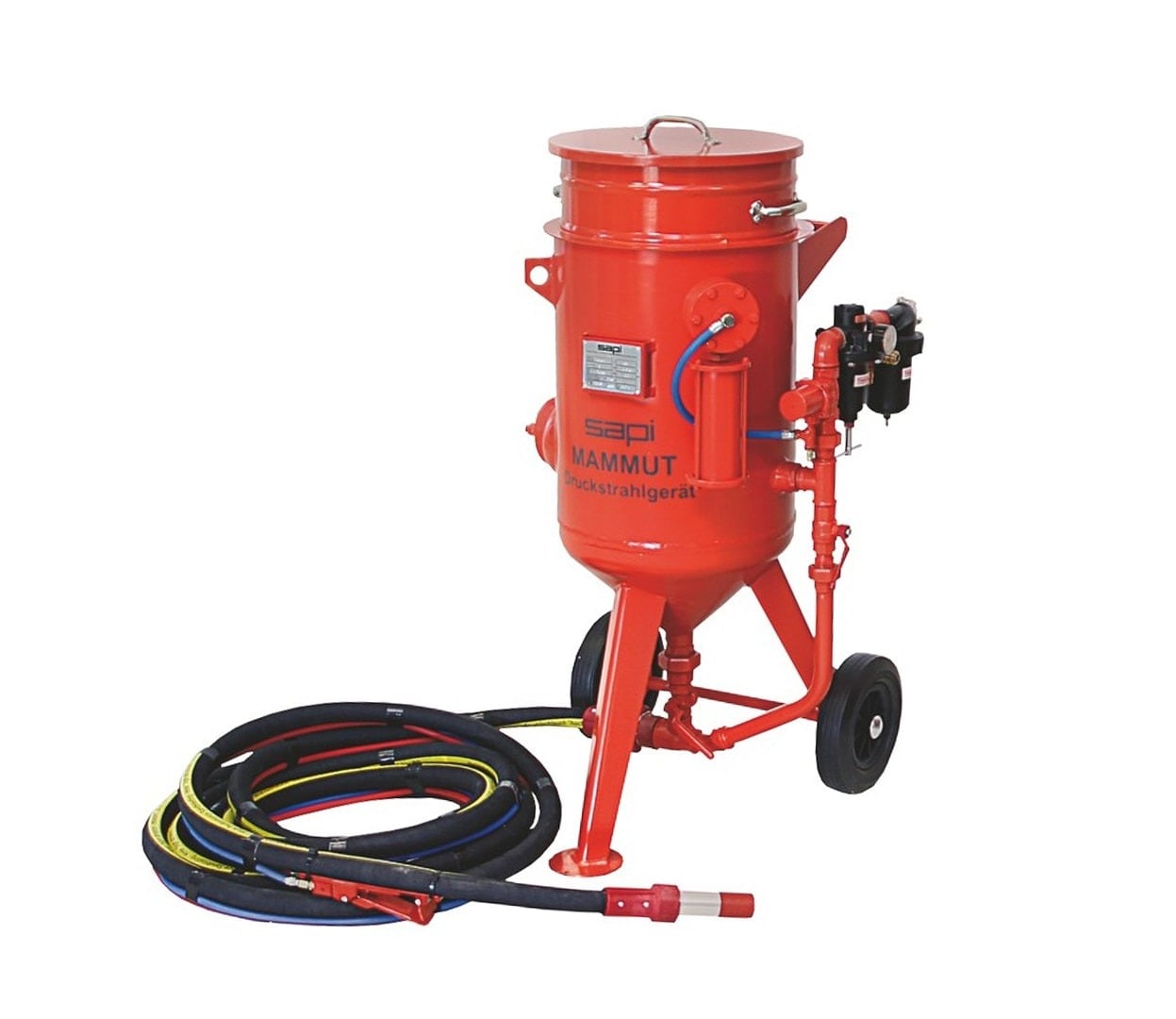

Mammut 60 Liter | Pressure sandblasting machine
Mobile 60 l pressure sandblasting device with inlet/outlet valve shut-off system (boiler ventilation shut-off), pressure-regulated from 0.1 - 12 bar, water separator 1" permanently attached. Suitable for all common sandblasting media. TÜV-tested with CE declaration of conformity.
-
T-Rex 100 | High-performance pressure & injector sandblasting cabin | Double power€12,245.10 €10,290.00 - Widder 70 | Injector sandblasting cabin€3,117.80 €2,620.00
- Büffel 140 | High-performance injector sandblasting cabin€6,533.10 €5,490.00
- MM 2010 | Integrated filter | Pressure sandblasting cabin | Siemens PLC control€26,632.20 €22,380.00
The SAPI-pressure sandblasting machine is equipped with a two split pneumatic safety quick stop (in- and outlet valve). The quick stop guarantees a fast switch in- and off time.
The unit is equipped with a pressure regulator and is continuously adjustable from 0,1 to 12 bar pressure.
The pressure sandblasting machine is suitable for all classical blasting works in the high-pressure range and can be used if necessary also in the low-pressure range. This is an advantage when sandblasting sensitive surfaces, such as thin-walled sheet metals, stainless steel, natural stone, etc.
With this technology sandblasting can be done without polluting chemicals in many cases, and thus you can also contribute to environmental-friendly protection.
Technical data
| Volume: | 60 Litre |
| Total height:: | 1.130 mm |
| Tank diameter: | 360 mm |
| Total diameter: | 700 mm |
| Weight: | ca. 60 kg |
| Fixed tubes inside and outside: | 1″ |
| SKU | 9522.060_EA |
|---|---|
| Delivery time | approx. 1 week |
| Shipping | Shipping not included |
| VAT | plus 19% VAT |
| Sale_label | No |
| Volumen | 60 L |
| Size Blasting Pot | 60 Liter |
| Quick Stop | No |
Recommended accessories for pressure sandblasting tanks with safety shutdown:
Sandblasting hose packages fully assembled for safety shutdown:
| 10 m sandblasting hose package 19x7 mm cpl. assembled With hand lever (backpressure lever), single control line, nylon nozzle holder and nylon sandblasting hose coupling. Article no. 9856.215 |
 |
| 10 m sandblasting hose package 25x7 mm cpl. assembled With hand lever (backpressure lever), single control line, nylon nozzle holder and nylon sandblasting hose coupling. Article no. 9851.110 |
|
| 10 m blasting hose package 32x8 mm cpl. assembled with hand lever (backpressure lever), single control line, nylon nozzle holder and nylon hose coupling. Article no. 9851.210 |
|
Silicon Carbide Venturi Pressure sandblasting Nozzles:
| Silicon carbide Venturi long nozzle ø 6 mm with 2" coarse thread, nozzle diameter 6 mm Article no. 3982.060 |
 |
| Silicon carbide Venturi long nozzle ø 8 mm with 2" coarse thread, nozzle diameter 8 mm Article no. 3982.080 |
|
| Silicon carbide Venturi long nozzle ø 10 mm with 2" coarse thread, nozzle diameter 10 mm Article no. 3982.100 |
|
Further accessories for pressure sandblasting devices, which make work easier:
Sandblasting media screens and lids for pressure sandblasting devices:
| Sandblasting media sieve for pressure sandblasting device When using bagged goods, the sandblasting media screen prevents pieces of paper from getting into the pressure vessel. In addition, if the abrasive is used several times, foreign matter is screened off. Article no. 3933.520 |
 |
| Lid for pressure sandblasting device The lid protects the pressure sandblasting vessel from dirt and moisture. Article no. 3933.015 |
 |
Sandblasting hose extensions fully assembled:
| 10 m sandblasting hose extension 19x7 mm cpl. assembled with 2 nylon hose couplings and control line. Article no. 9856.218 |
 |
| 10 m sandblasting hose extension 25x7mm cpl. assembled with 2 nylon hose couplings and control line. Article no. 9851.610 |
|
| 10 m sandblasting hose extension 32x8 mm cpl. assembled with 2 nylon hose couplings and control line. Article no. 9851.710 |
|
Personal protective equipment (PPE) as a complete set for optimum protection of the worker during sandblasting work:
| Sandblasting protection package RED 2 consisting of: Blasting helmet "RED 2" with nylon jacket Sandblasting suit nylon/cotton 1 pair of blasting gloves leather Breathing air filter/activated carbon filter "SAF Connecting hose for breathing air filter 10 m breathing air hose 1 pack inner discs for "RED 2 1 pack wear plates for "RED 2 1 pack tear-off foils for "RED 2 Article no. 9891.160 Blaster protection package |
   |
| Sandblasting protection package RED 1 consisting of: Blasting helmet "RED 1" with nylon jacket Sandblasting suit nylon/cotton 1 pair of blasting gloves leather Breathing air filter/activated carbon filter "SAF Connecting hose for breathing air filter 10 m breathing air hose 1 pack inner discs for "RED 1 1 pack of wear discs for "RED 1 Article no. 9891.150 Blast protection package |
 |
